Device Configuration
Once connected to a Station Display, the Home screen shows the current device settings. Tap Edit to modify them.

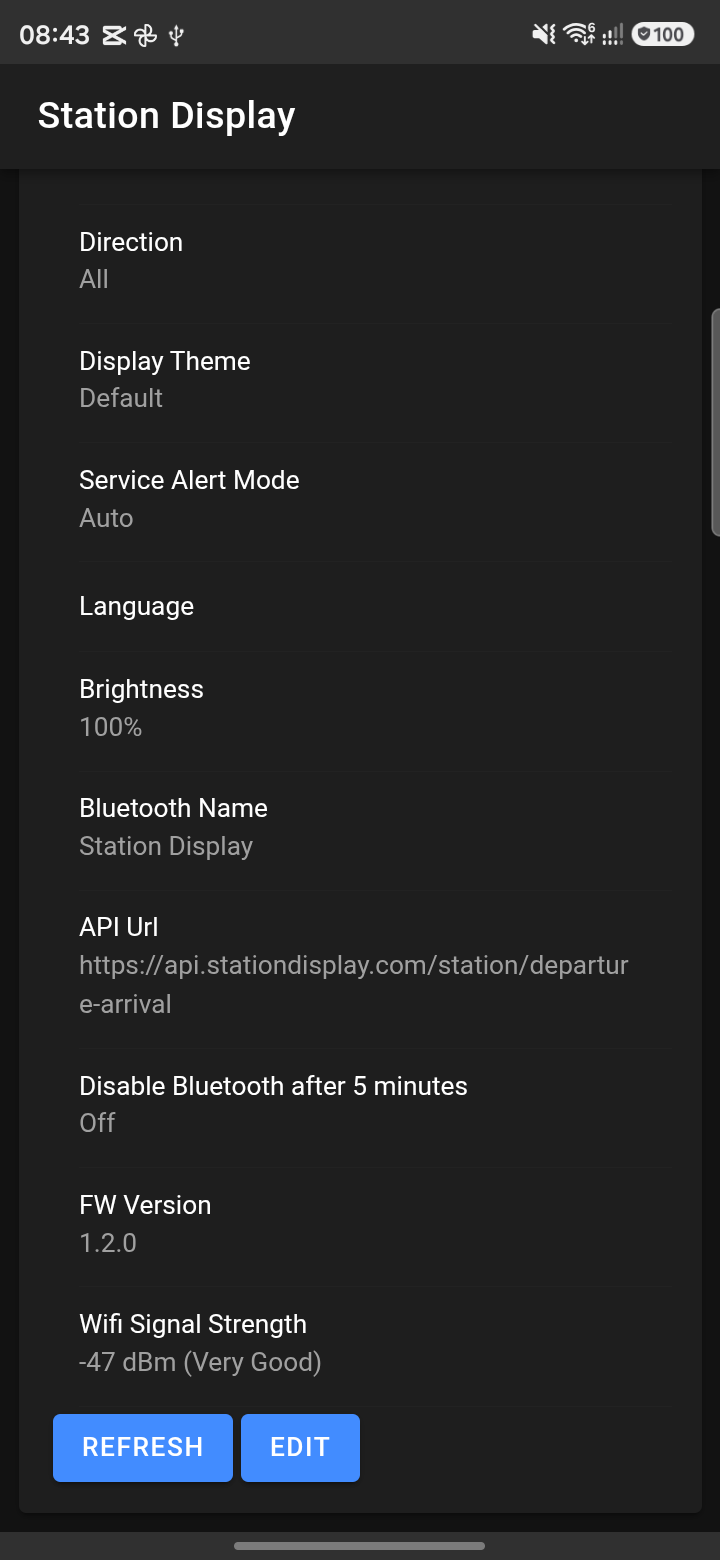

Current settings overview after connecting
WiFi Settings
Configure the WiFi network the display connects to for fetching departure data.

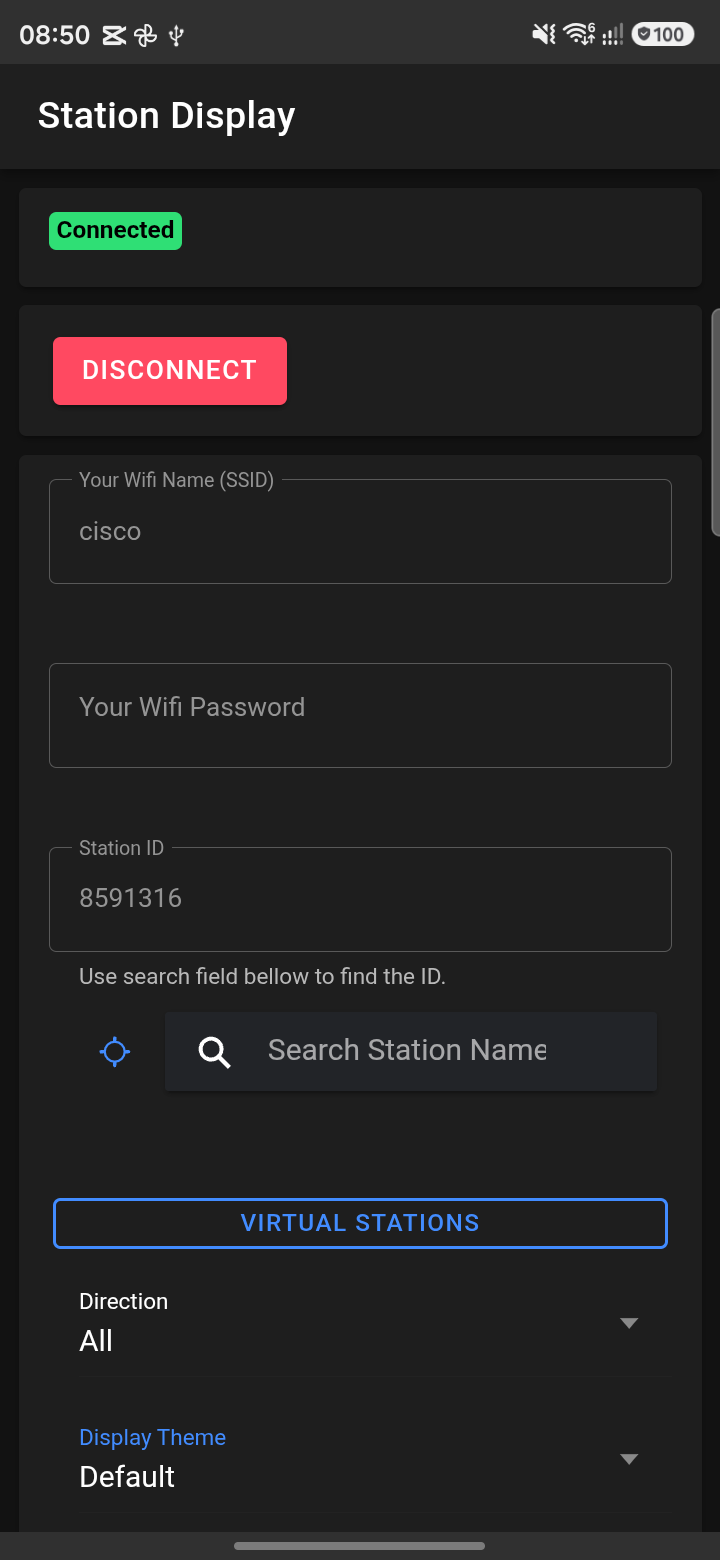

WiFi SSID and password fields
- WiFi Name (SSID) — Enter your network name. The reset button restores the default. If the device previously connected to a WiFi network, the current-connection button fills in the active SSID.
- WiFi Password — Hidden input field. Only written to the device when changed.
Station Display wifi status
Station Settings

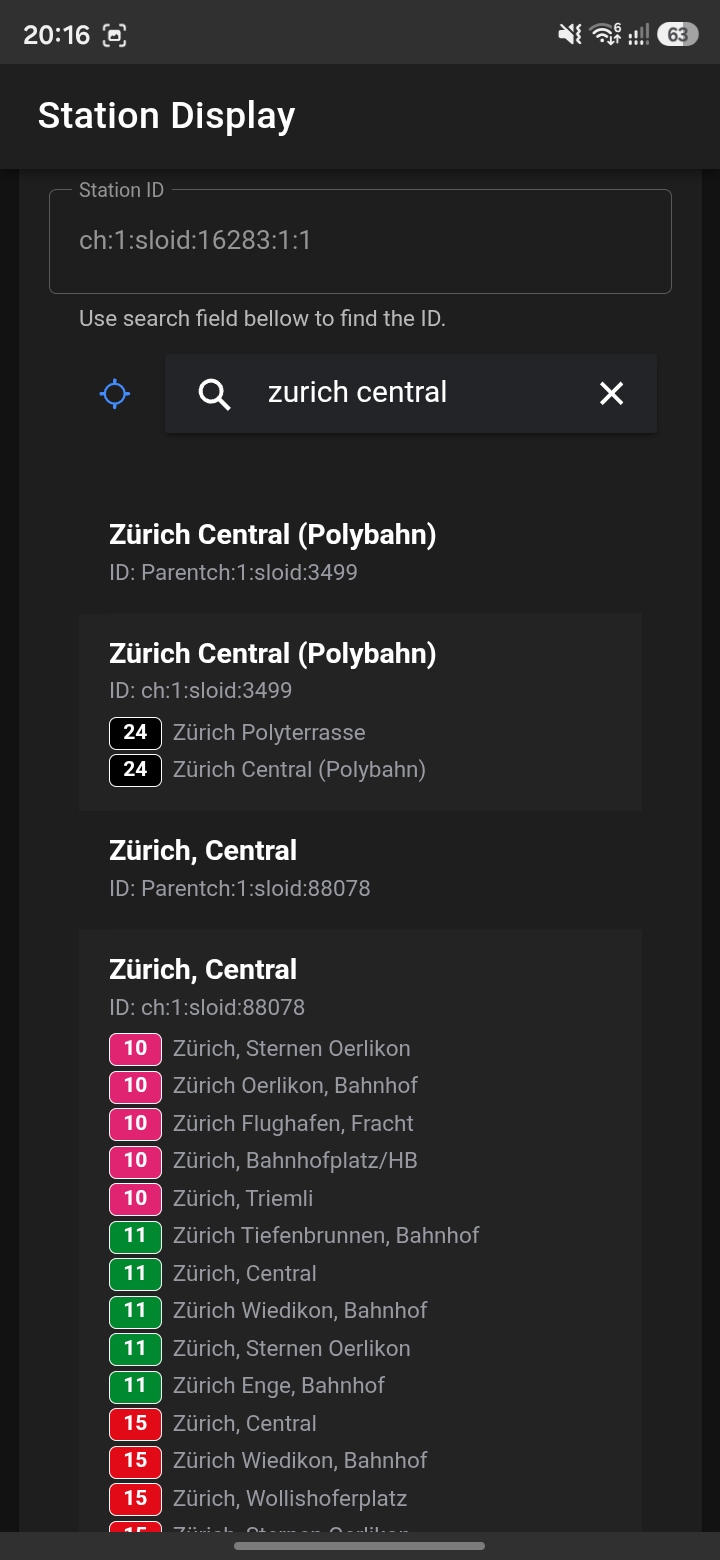

Station ID search with results
- Station ID — Search for a station by name or use the location icon to find nearby stops. Tap a result to select it. The station ID field is populated automatically.
- Direction — Filter departures by direction:
- All — Show all departures
- In — Trains/buses arriving at the station
- Out — Trains/buses departing from the station
Display Settings
- Display Theme — Visual style of the e-paper display:
- Default — Standard layout
- With Titlebar — Includes a header bar
- High Contrast — Maximum contrast for readability
- High Contrast with Titlebar — High contrast with header
Station Display Theme: Default
Station Display Theme: With Titlebar
Station Display Theme: High Contrast
Station Display Theme: Contrast with Titlebar
- Brightness — Set the display brightness from 10% to 100%, or Automatic (ambient-light adjusted).
- Service Alert Mode — How disruption alerts appear: Auto, Off, Scroll, or Fullscreen.
Station Display Alert: Fullscreen
Station Display Alert: Scroll
- Language — Display language: English, Deutsch, Français, or Italiano. This affects the displayed service alerts as well.
Advanced Settings

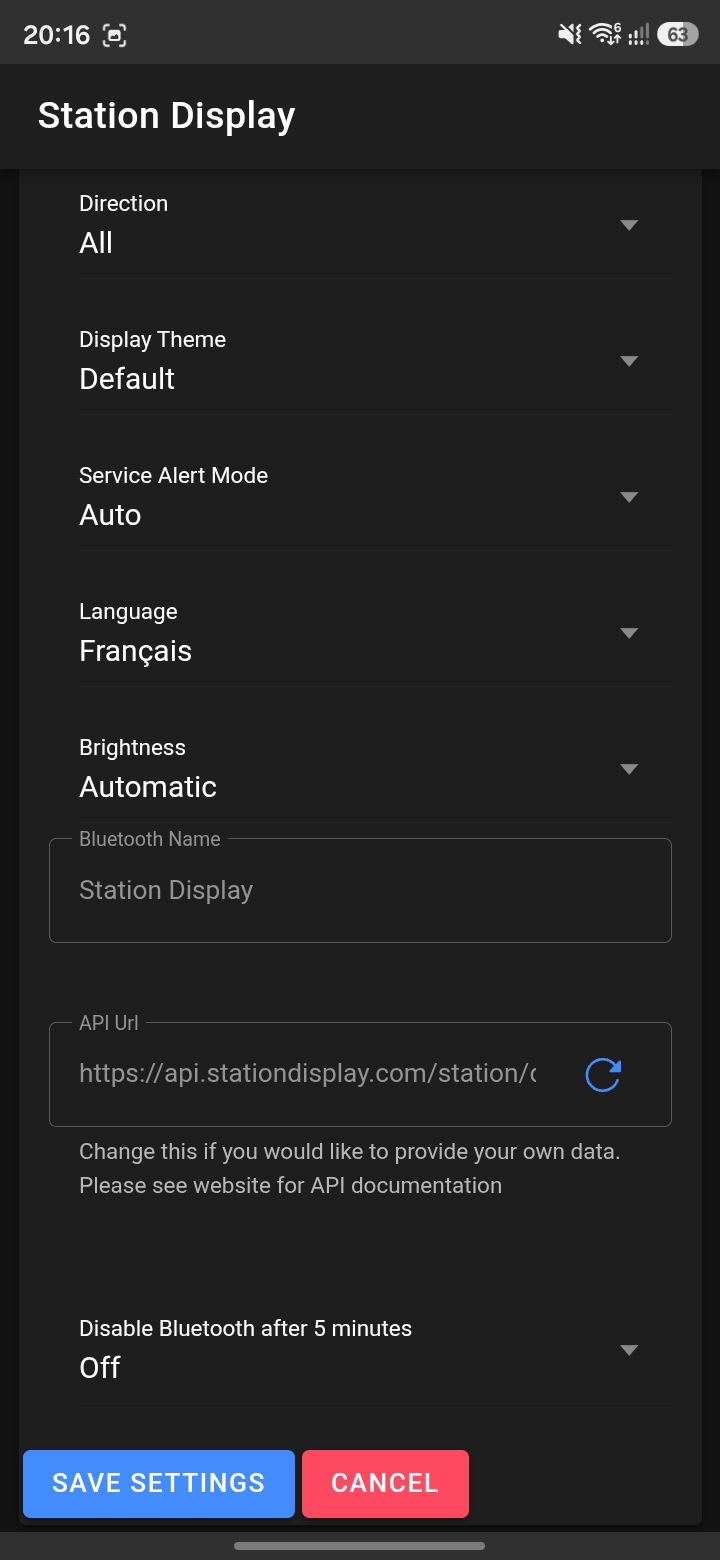

Station Advanced Settings
Tap Advanced Settings to reveal additional options:
- Bluetooth Name — Custom BLE device name for the display. For when you have more than one device.
- API URL — Override the backend API endpoint (default: https://api.stationdisplay.com/station/departure-arrival) for departure data. Please see API.md for api documentation. At this time you will need to serve custom data via SSL but the certificate can be self-signed.
- Bluetooth Timeout — Toggle whether Bluetooth auto-disables after 5 minutes (power cycle required to re-enable). In public spaces it is highly recommened to leave this settings to auto disable Bluetooth.
Read-Only Fields
- Serial Number — Device serial identifier
- Firmware Version — Current firmware version
Station Display Firmware Version on boot
- Hardware Version — PCB revision
- WiFi Signal Strength — Current RSSI in dBm with quality label
Saving Changes

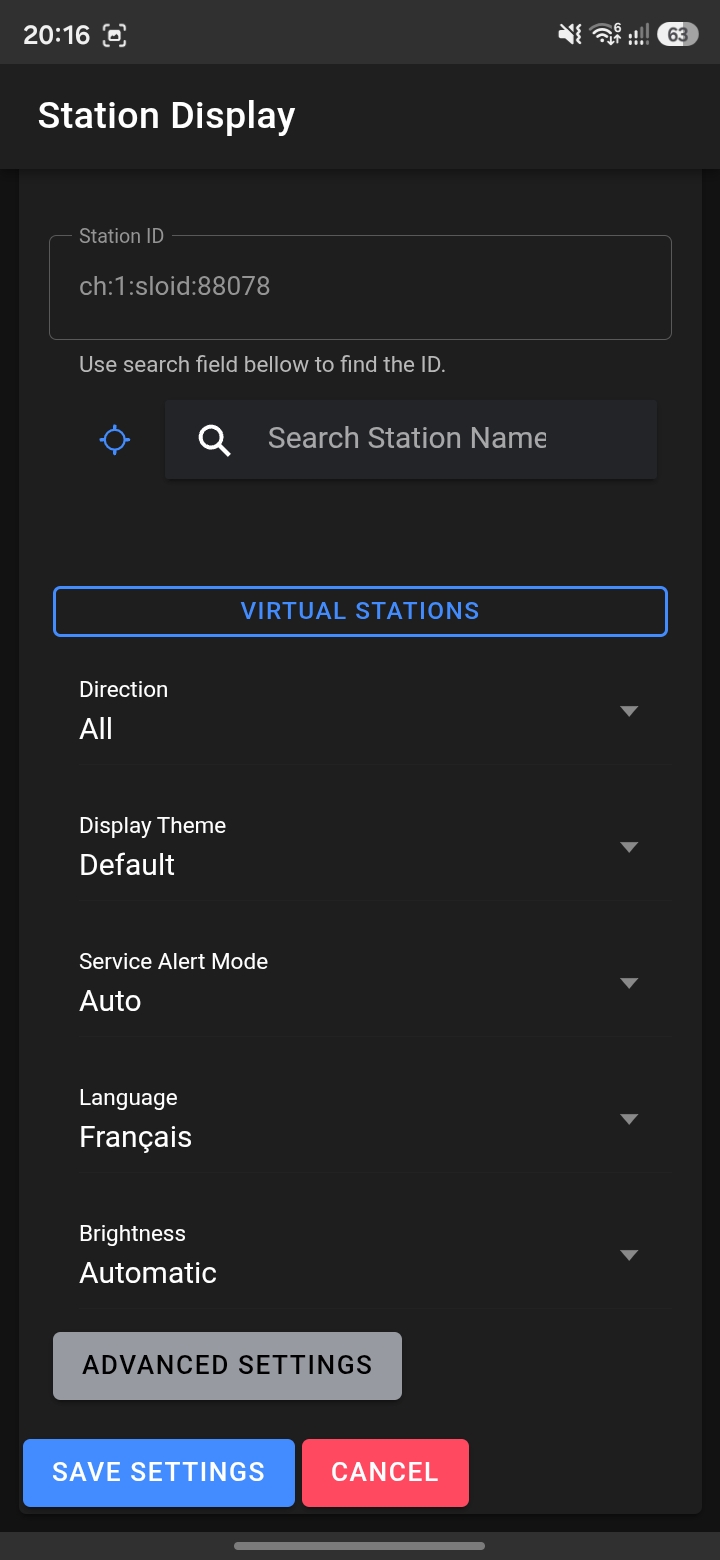

Station Save Settings
After editing, tap Save Settings. The display receives the new values and reboots if required to apply them.
